The New Holland Construction Small Articulated Loader (SAL) line introduces a groundbreaking solution for operators, excelling in smaller tasks with exceptional lifting capability. Offering the perfect blend of commodity and convenience, these machines provide operators with enhanced visibility, spacious cabs, and a range of attachments for seamless multitasking on any surface.

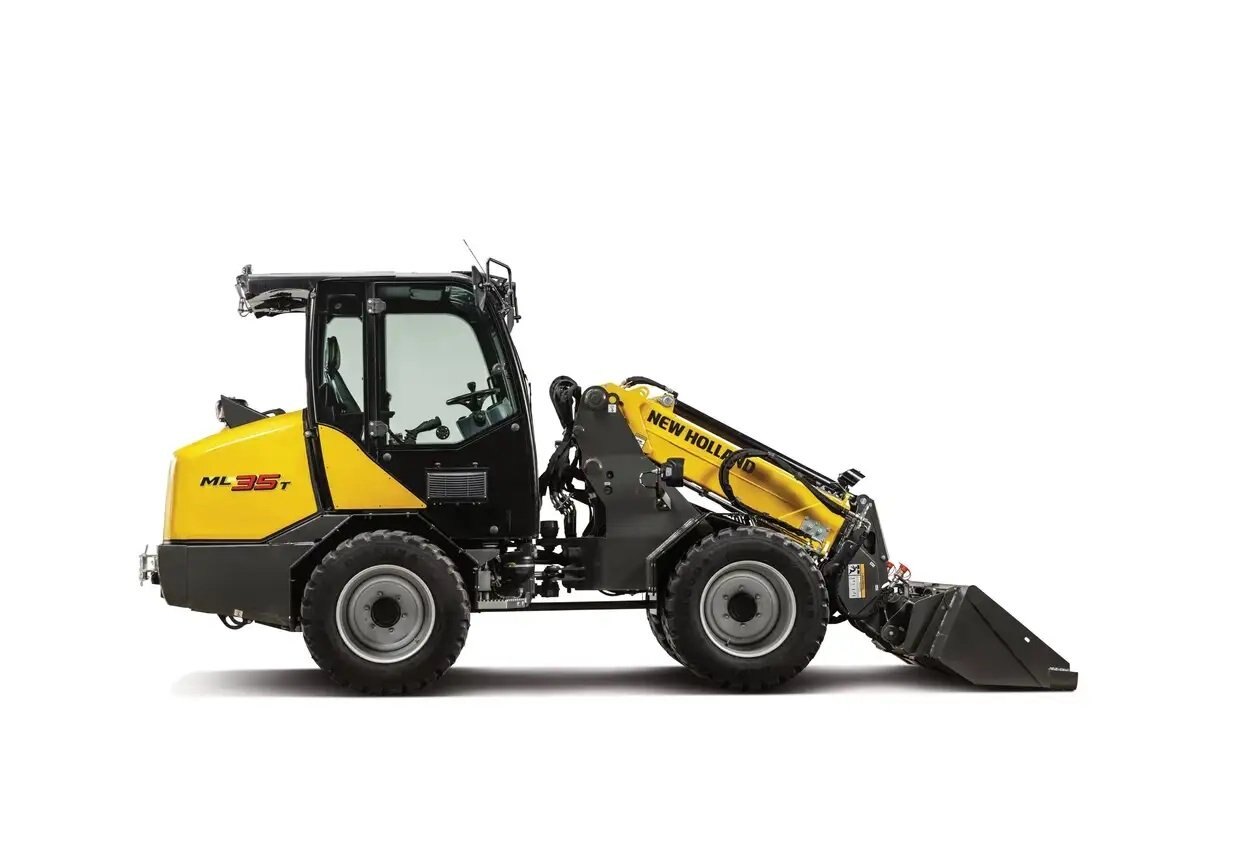

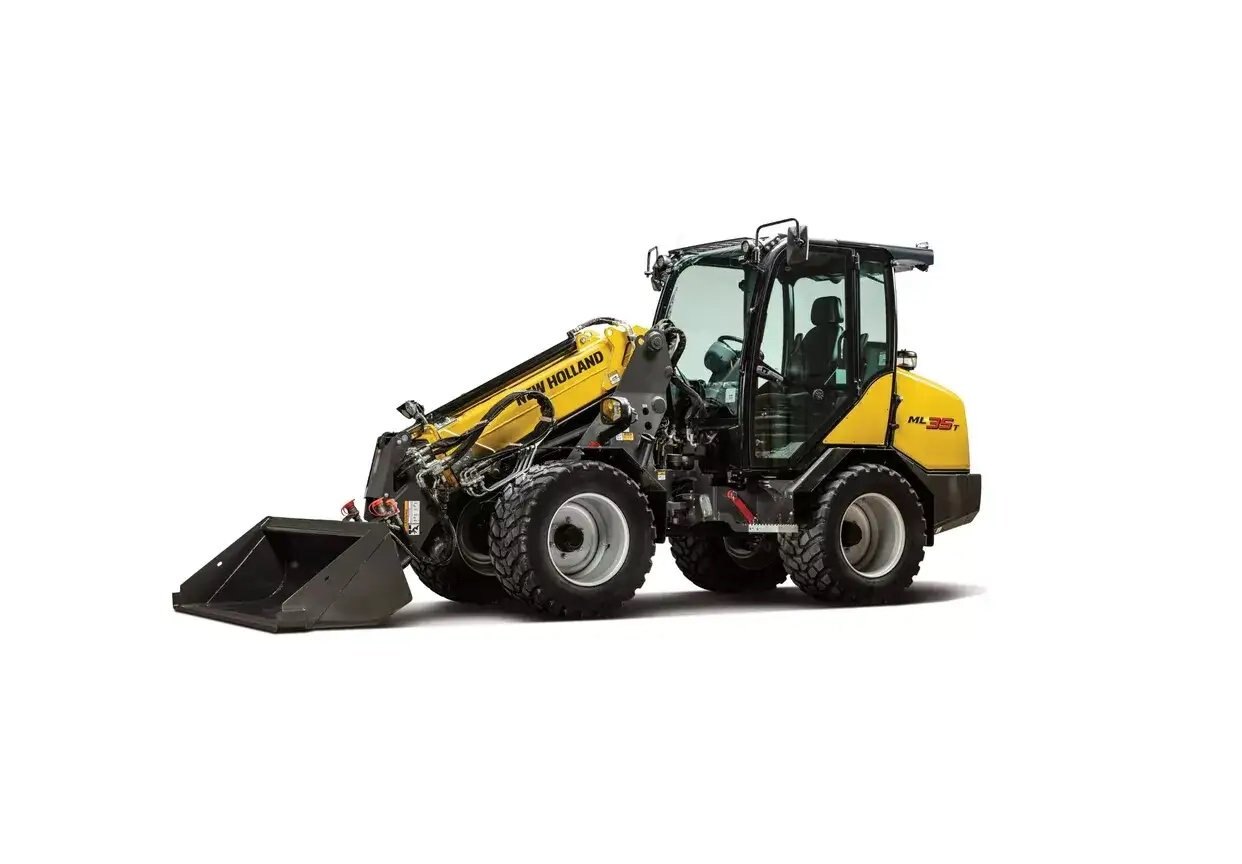

The new small articulated loader (SAL) line from New Holland equips operators with the compact power to get more done. The effective combination of strength, versatility, and light footprint makes the ML35 Telescopic (T) exceptional for smaller tasks on any surface. A force to be reckoned with, the impressive lifting capacity handles loads with ease. Discover the various features that seek to enhance stability and safety in the ML35T.
With a narrow width of 52.8 inches (1340 mm) and overall height of 89.6 inches (2275 mm) model ML35T is suitable for landscapers focused on clearing sidewalks or fenced-in areas with limited space. Machine length without a bucket comes in at 160.1 inches (4067 mm), length with bucket at 195.4 inches (4965 mm).

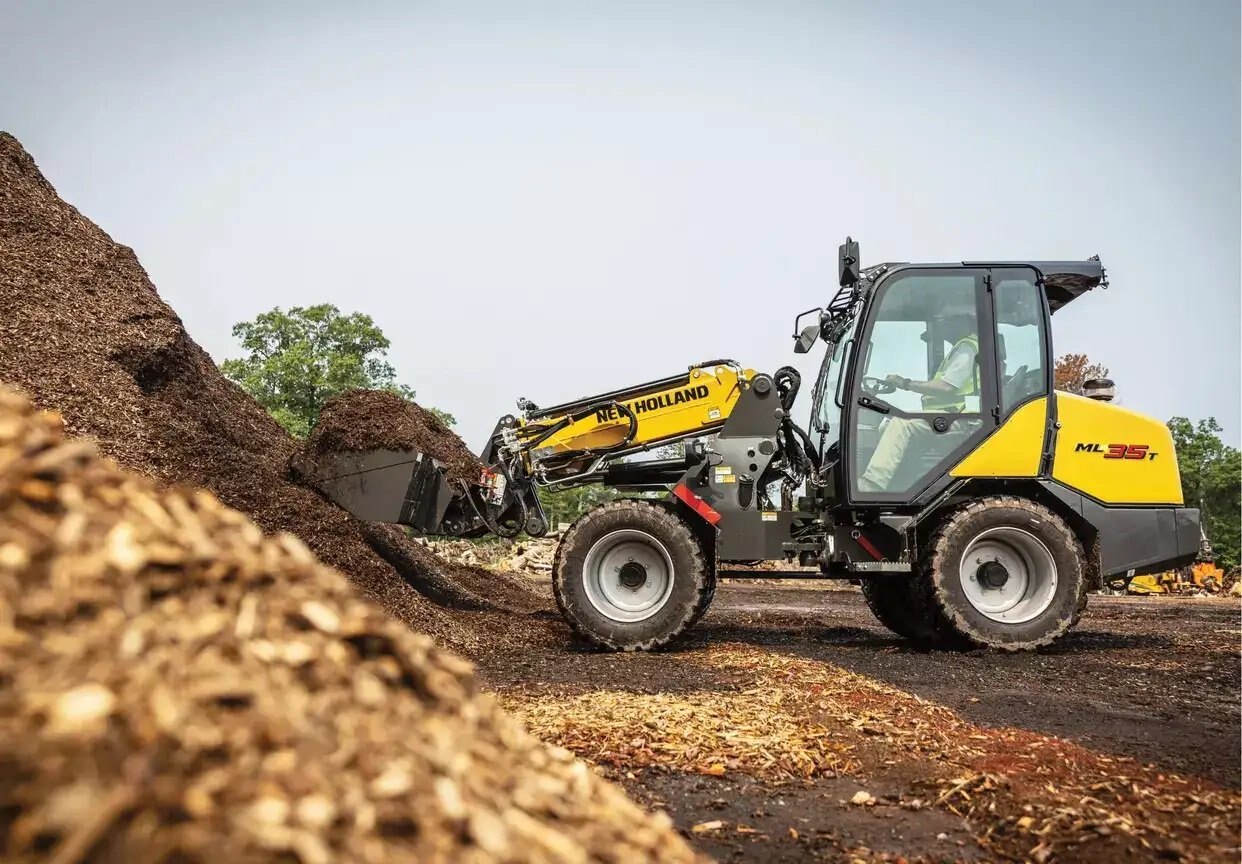

The small articulated loader series provides unmatched agility to maneuver in tight spaces. Perfect for various landscaping and light construction jobs, these machines are just the right size for snow and debris removal on sidewalks and in backyards, hauling landscaping materials, removing fallen trees or for working on jobsites with sensitive surfaces. Don't be misled when reading 'small' in all this talk regarding New Holland's small articulated loaders; the compact size still provides powerful lifting capabilities.
STRENGTH AND STABILITY
Jobsites and tasks requiring heavy machinery power delivered through a compact package can turn to New Holland's small articulated loaders. Model ML35T stacks up to 89.6 inches (2275mm) in height without a bucket and 77 inches (1955 mm) with a bucket. This telescopic model carries a maximum dumping height of 134.3 inches (3410 mm) and an ultimate lifting height of 169.8 inches (4312 mm).
The 65 HP (48.6 kW) machine is joined by 146.4 lb•ft (198.5 N•m) of peak torque @1,600 RPM, yet still has minimal ground disturbance when turning or hauling on soft ground like turf. The ML35T comes fitted with an open cab, ROPS/FOPS safety roof and a stability-supporting 77.6 inch (1972 mm) wheelbase. The low center of gravity allows for stable operations, contributing to seamless and precise performance.
A RANGE OF POSSIBILITY
The extended lift on the ML35T allows operators to load and unload materials from large trucks, while the extended reach provides more flexibility in dumping, leveling and grading tasks. The telescopic arm provides 169.8 inches (4312 mm) of lifting height and tipping load paths from 1,630 lbs (740 kg) up to 5,510 lbs (2500 kg), depending on loader position. The 8,818 lbs (4000 kg) operating weight easily knocks out light construction scenarios such as moving pallets or light debris.
WHEN COMPACT MEETS CONVENIENT
STRENGTH AND STABILITY
A RANGE OF POSSIBILITY
